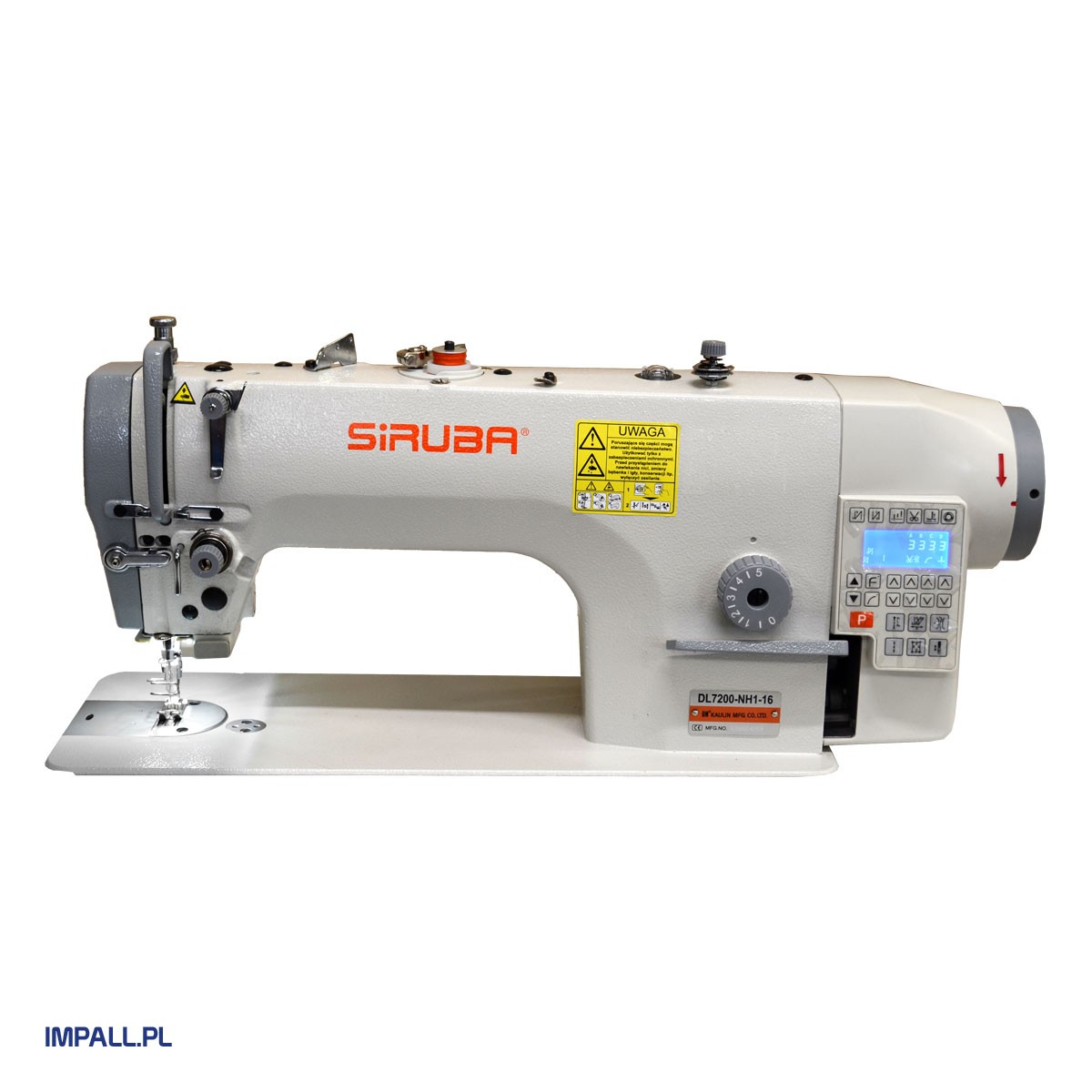

Latest 1-Needle Lockstitch Machine with Needle Feed and Automatic Functions
The latest 1-needle lockstitch machine with needle and feed dog transport for sewing light and medium materials, equipped with automatic functions. The energy-saving servo motor (Direct Drive), control box, and control panel are built into the machine head, enabling automatic functions:
- thread trimming
- locking at the start and end of sewing
- needle positioning
- stitching parameter programming
- presser foot lifting
For enhanced comfort, the machine includes powerful LED lighting with adjustable brightness and a reverse stitch button located beside the needle.
Technical Specifications:
- Sewing speed: 4500 stitches/min (standard 4000 stitches/min)
- Stitch length: 4 mm
- Double feed (upper needle feed + lower feed dog)
- Presser foot lift: 13 mm
- Automatic lubrication
- Power supply: 230V
- Needles: DBx1 (16×231)
The machine features a new wiper (nipper) mechanism to hold the thread at the start of sewing. This updated mechanism also supports a wider range of additional attachments. The machine is complete with a table and motor (230V power supply).
