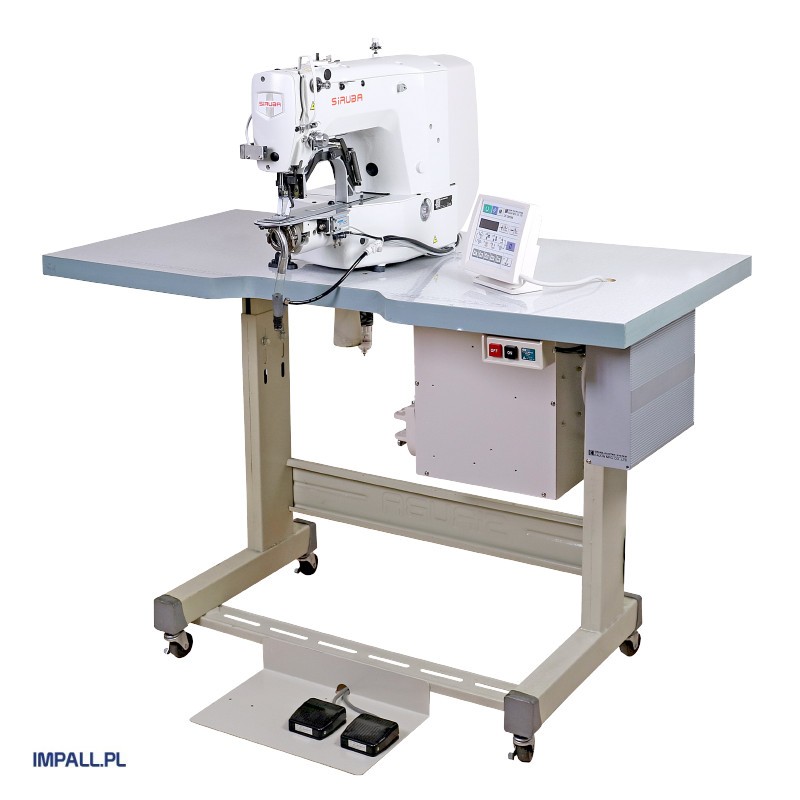

A specialized 2-thread electronic bar tacking machine designed for securing the ends of coverstitch seams (such as binding or autolap seams). The machine is equipped with special equipment that vacuums and arranges the chain stitch before securing it with a bar tack. This is an excellent solution for sewing sportswear, where there are many coverstitch seams that need to be reinforced with bar tacks.
The energy-saving servo motor is integrated into the machine head (Direct Drive system).
Electronically programmable needle thread tension ensures the highest quality stitch on the finished product.
Technical specifications:
- Sewing speed: 2,000 stitches/min
- Stitch length: 0.1 – 10 mm
- Needle bar stroke: 41.2 mm
- Needles: DPx5 (#14)
- Power supply: 230 V / 50 Hz
- Air working pressure: 0.5 MPa
- Average air consumption: 175 l/min
Connection to a compressed air source is required.
