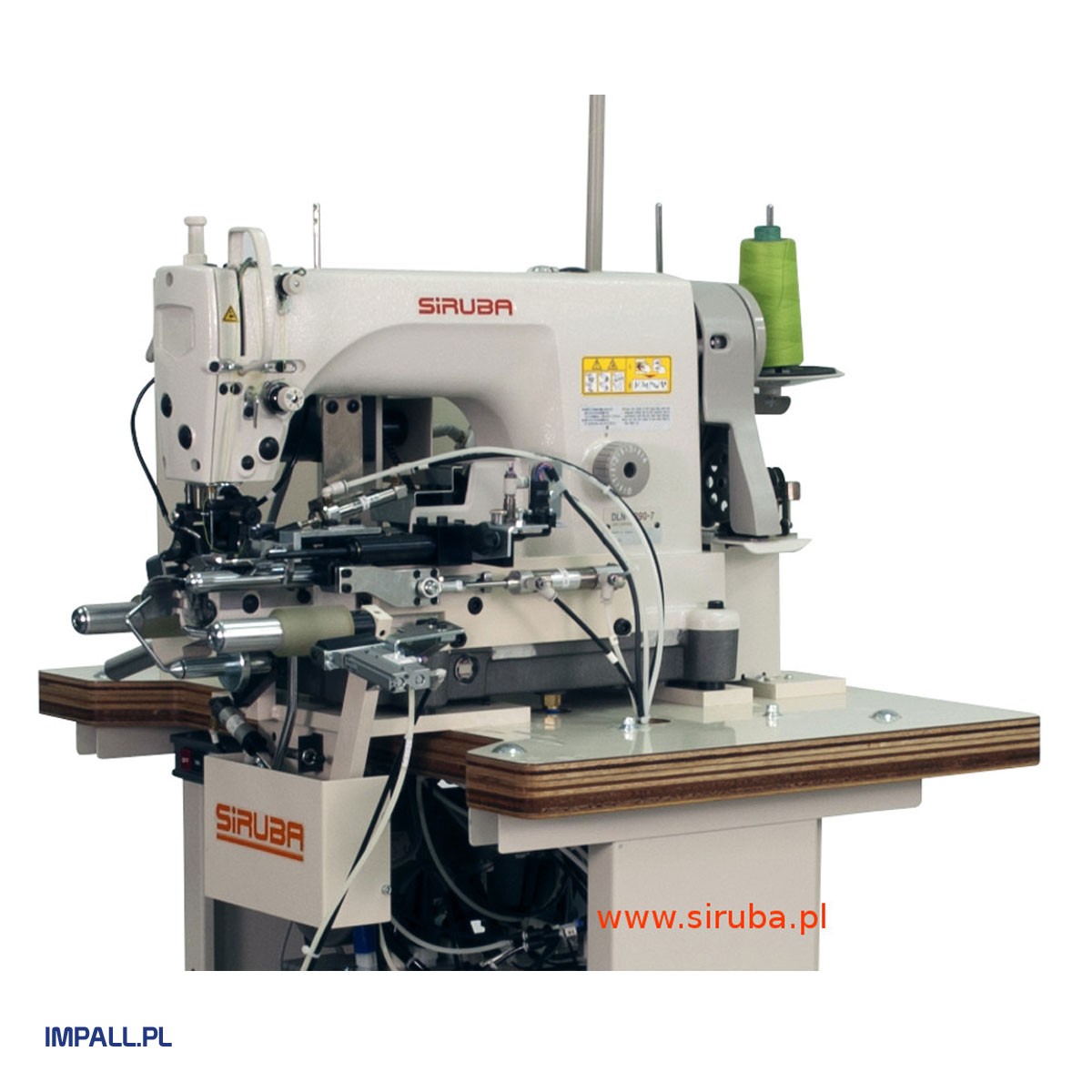

SIRUBA ASL-JBH100

A high-performance automatic machine designed for hemming the bottom of jeans pant legs. Its advanced material guidance system and adjustable hemming width ensure high repeatability and productivity. Built with the Juki DLN-6390-7 sewing head, this machine minimizes operator involvement to simply placing the pre-folded pant leg into the working area. The machine automatically adjusts the programmed hemming width, eliminating the need for changing guides or folders. Capable of sewing on either the left or right side of the pant leg.

Technical Specifications:

• Sewing speed: 4000 stitches/min
• Pant leg circumference: 380 – 600 mm (width: 190 – 300 mm when folded)
• Hemming width: 12.7 – 35.0 mm
• Productivity: 2400 pants/8 hours
• Power supply: 230V
• Compressed air requirement: 25 liters/min, 0.5 MPa
• Needle system: UY180GVS SERV7

Features:

• Advanced system for guiding material and adjusting hemming width
• High precision and consistency in hemming operations
• Programmable width adjustment without replacing folders or guides
• Suitable for sewing on either the left or right side of the pant leg
