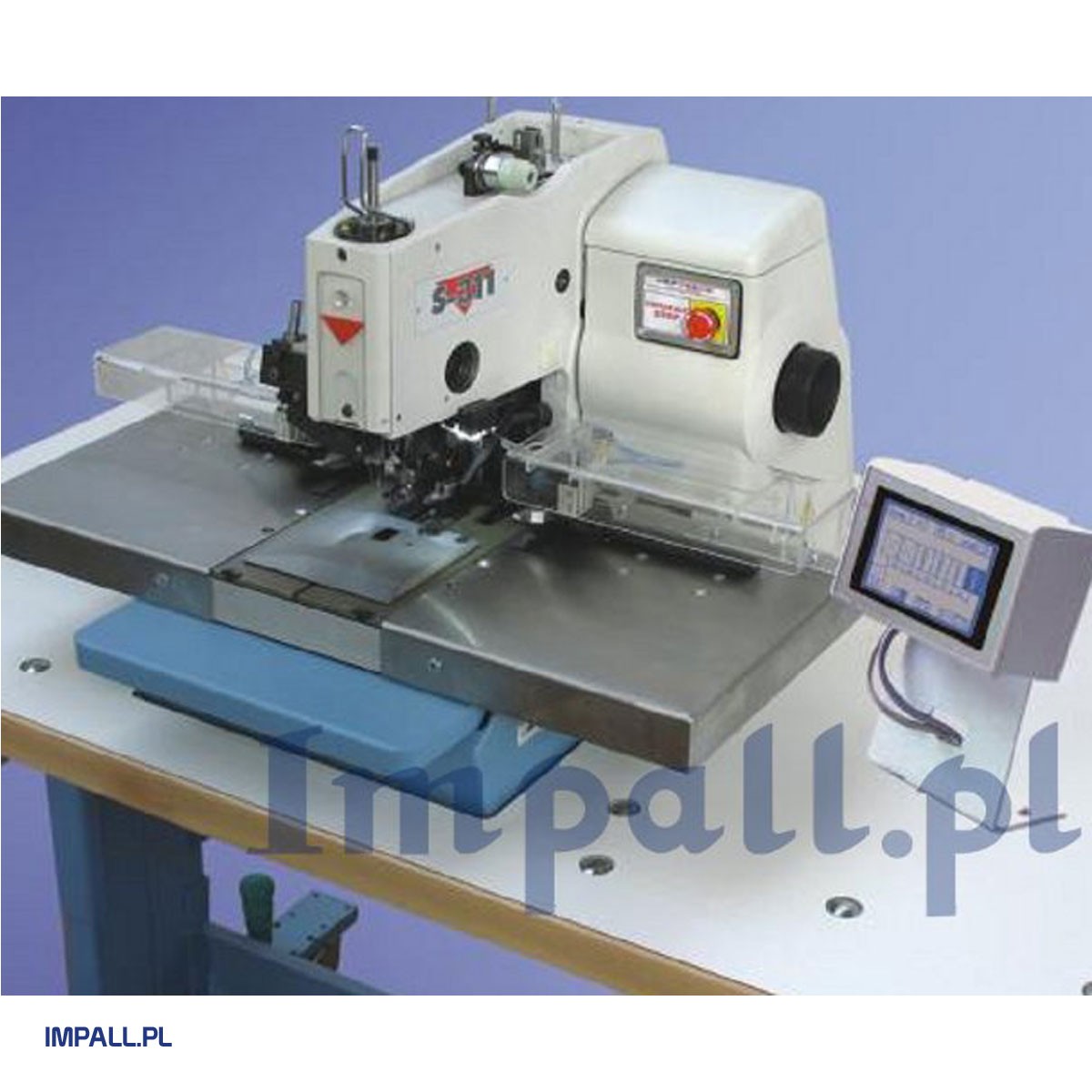

REECE S-311 INDEXER

Description

Electronic 1-needle, 2-thread garment buttonhole machine with the option to sew a third reinforcing thread (cord), equipped with an indexer allowing automatic sewing of up to 6 buttonholes in a single operation. Designed for medium and heavier materials. The machine is powered by an energy-saving direct drive system. Settings are made via a clear touch control panel. The machine allows sewing various types of buttonholes (with convergent or transverse bartacks, with or without an eye).

Technical parameters:

• sewing speed: up to 2000 stitches/min
• buttonhole length: 16-32 mm
• number of programmed buttonholes per cycle: 1 – 6
• spacing between adjacent buttonholes: 8 – 160 mm
• distance from the edge to the first buttonhole (horizontal): 31 mm
• distance of buttonholes from the edge of the material (vertical): 9 – 19 mm
• spacing between the first and last buttonhole: up to 160 mm
• automatic thread trimming
• needle system: AmfRecce 558
• machine weight: 175 kg
• power supply: 230V

Connection to compressed air required (4.5 bar).
