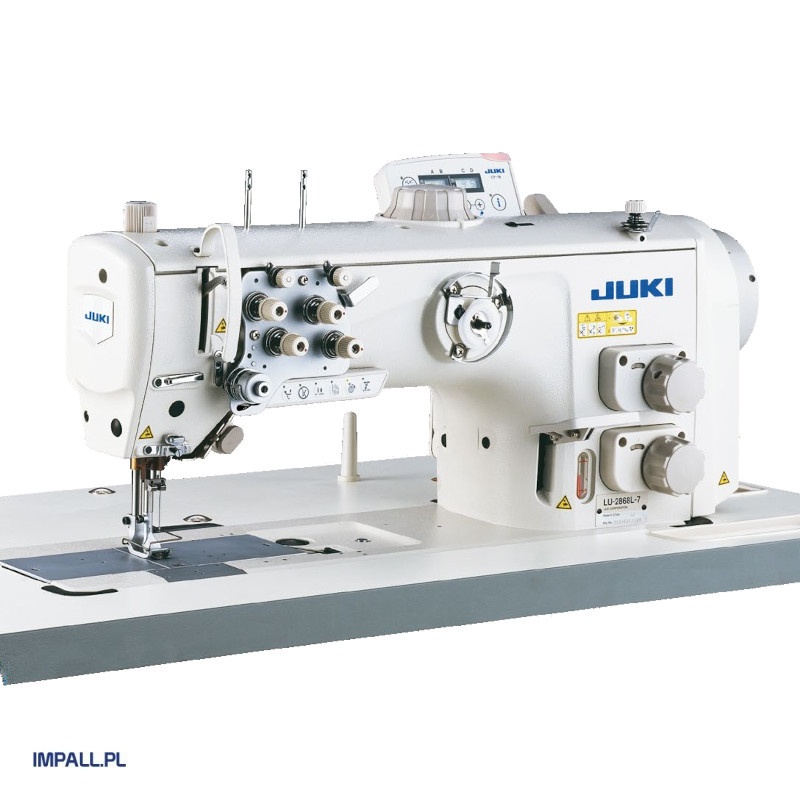

Juki’s latest 2-needle lockstitch machine with triple feed for sewing heavy materials such as leather, upholstery, and more. The machine is equipped with automatic functions such as thread trimming, bartacking, presser foot lift, and needle positioning. The walking foot height is adjustable via a graduated dial on the machine head. The machine is equipped with XXL hooks and large bobbins with a capacity of 2.7 standard bobbins. Technical specifications:
– sewing speed 2700 stitches/min
– stitch length 12 mm
– standard needle gauge 10 mm (others available upon request)
– presser foot lift 20 mm (manual 10 mm)
– bobbin diameter 32 mm
– walking foot lift 9 mm
– 135×17 needles 160 Nm (125 – 180 Nm)
– thread 60/3 – 20/3
– double-capacity loopers
– 230V power supply

The machine allows you to program the starting and ending bartack sizes and has a function for setting two stitch lengths, which can be changed during sewing using a function button near the sewing zone.
The bartack function can be quickly and easily disabled once in the program.
A quick-change function for the walking foot lift is also available.
Automatic functions are programmed using the control panel on the machine head. A compressed air connection is required for proper operation.

The new model features a number of improvements that significantly improve operating parameters and make the machine more versatile, including:
a) The machine is driven by a modern, energy-efficient, reinforced servo motor (high torque), mounted in the head directly on the machine’s main shaft. This solution guarantees lower electricity consumption, reduced vibration, and quieter operation, and ensures full utilization of the motor’s power, which is important when sewing multi-layered, heavy materials.
b) The extended and raised machine arm has increased the working area available to the operator. The distance from the body to the needle is 347mm, and the arm height is 127mm. This increased working area allows for sewing larger materials than before.
c) An improved, new lubrication system ensures lubrication even at low sewing speeds. Oil is supplied to the hook and then filtered to remove any contaminants before returning to the tank. This increases lubrication efficiency and the durability of the machine’s components. The level indicator and the oil filler hole are placed in a visible place at the front of the machine body (topping up oil does not require tilting the head)
