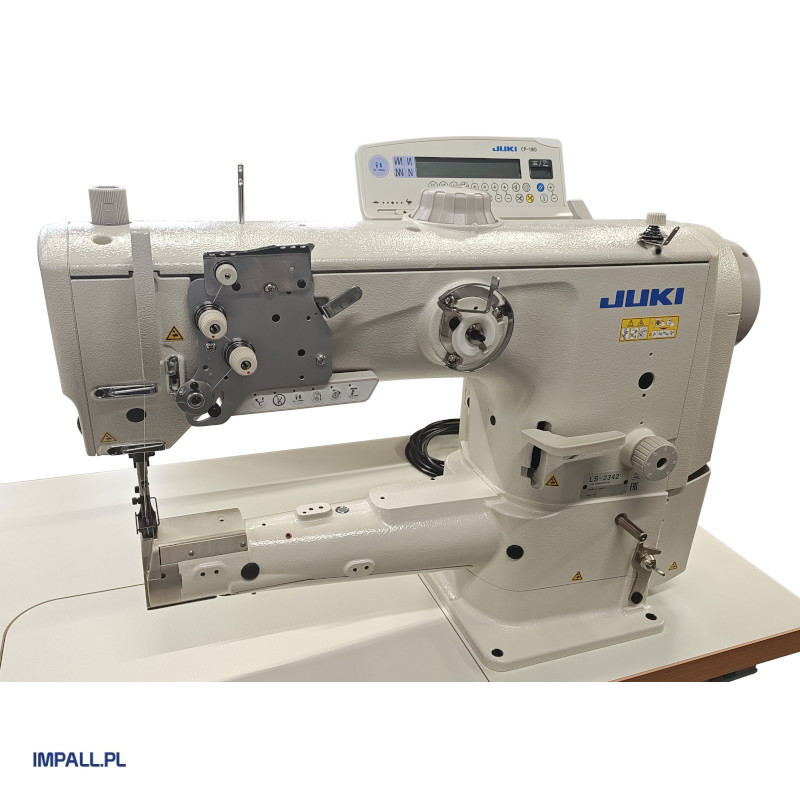

JUKI LS-2342S
TRIPLE FEED LOCKSTITCH MACHINE
Description
Description
Single-needle cylinder-bed lockstitch machine with triple feed and vertical hook. Designed for sewing heavy materials. The machine features an energy-saving direct-drive servo drive and a head-mounted operating panel.
Automatic presser foot lift and needle positioning. The walking foot height is adjustable via a graduated dial on the machine head.
Large workspace under the machine head (347 x 127 mm).
A dual needle thread tension system ensures perfect stitches even on very heavy materials.
An additional panel of six function buttons is located in an easily accessible location under the machine arm.
Technical specifications:
– Sewing speed: 2,500 stitches/min.
– Max. stitch length: 9 mm.
– Max. Presser foot lift: 20mm,
– Cylinder diameter: 72mm,
– Needle system: 134×35mm (Nm 100~Nm 180, standard Nm 140),
– Thread thickness: Nm 90/3 – 20/3.
Compressed air connection required.
