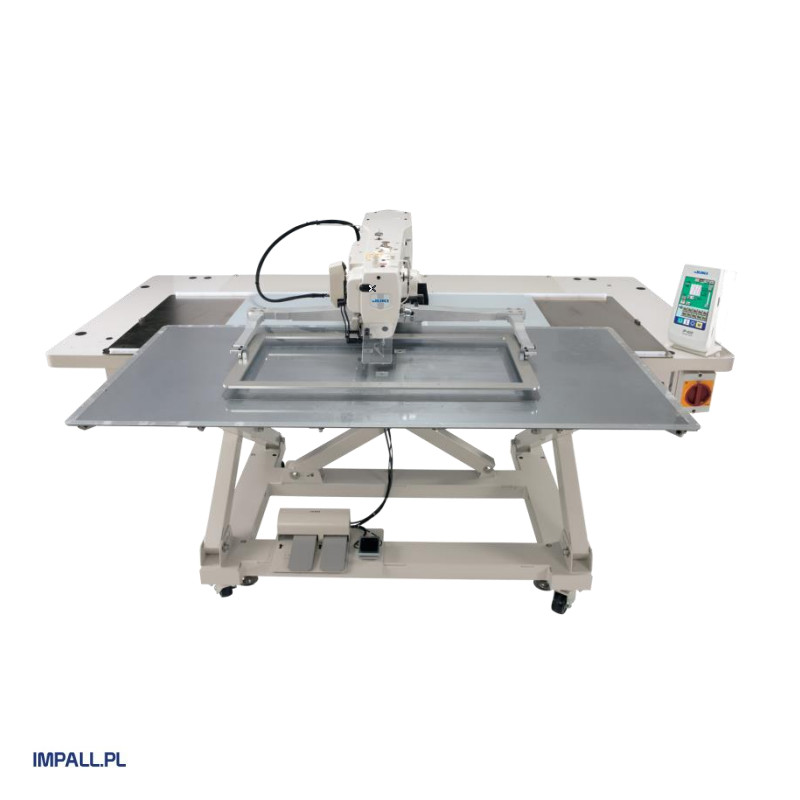

JUKI AMS224ENHS/JEUX0043
AUTOMATIC MACHINE FOR SEWING A PROGRAMMED PATTERN IN A LARGE SEWING AREA
Description
Description
An electronically controlled sewing machine for sewing pre-programmed patterns with a large sewing area, equipped with a servo motor built into the machine head (Direct Drive system) and stepper motors.
The ENHS subclass is designed for sewing medium and heavyweight materials.
This machine is used for multiple, repeatable patterns, such as sewing labels and pockets, attaching fasteners, decorative stitching, and adding handles and buckles. It is excellent for multi-layer sewing of heavier materials and is widely used in various production areas, such as workwear and technical materials.
Machines are available in different subclasses depending on the size of the working area.
Machine Model Sewing Area [mm] Option
AMS224ENHS6030SZ/X7910NSF/JEUX0043-100X 1000×300 Perfect Stitch
AMS224ENHS4530SZ5000NSF/JEUX0043-6060 600×575
AMS224ENHS4530SZ5000NSF/JEUX0043-8060 800×575
AMS224ENHS6030SZ/X7910NSF/JEUX0043-8060 800×575 Perfect Stitch
AMS224ENHS4530SZ5000NSF/JEUX0043-12060 1200×575
AMS224ENHS6030SZ/X7910NSF/JEUX0043-12060 1200×575 Perfect Stitch
AMS224ENHS4530SZ5000NSF/JEUX0043-15060 1500×575
AMS224ENHS4530SZ5000NSF/JEUX0043-21060 2100×575
Technical specifications:
– 2-thread lockstitch
– Maximum sewing speed (with variable speed control): 2500 stitches/min
– Stitch length: 0.1 – 12.7 mm
– 30 mm frame lift height allows for working with thick materials. – Needle bar stroke: 41.2 mm
– Presser foot lift: 30 mm (single, non-divided frame)
– Double-capacity shuttle hook.
– Internal memory: 999 patterns, maximum 50,000 stitches per pattern
– DPx17 needles
– 230V power supply
The machine is equipped with an IP420 color touchscreen control panel that allows you to control basic machine parameters, as well as modify and create your own stitching patterns.
Electronically controlled active needle thread tension allows you to program different tension values for different sections of the stitching pattern.
A compressed air connection is required.
Optional accessories include:
– Tray mounting system
– Needle cooling
– Barcode reader
