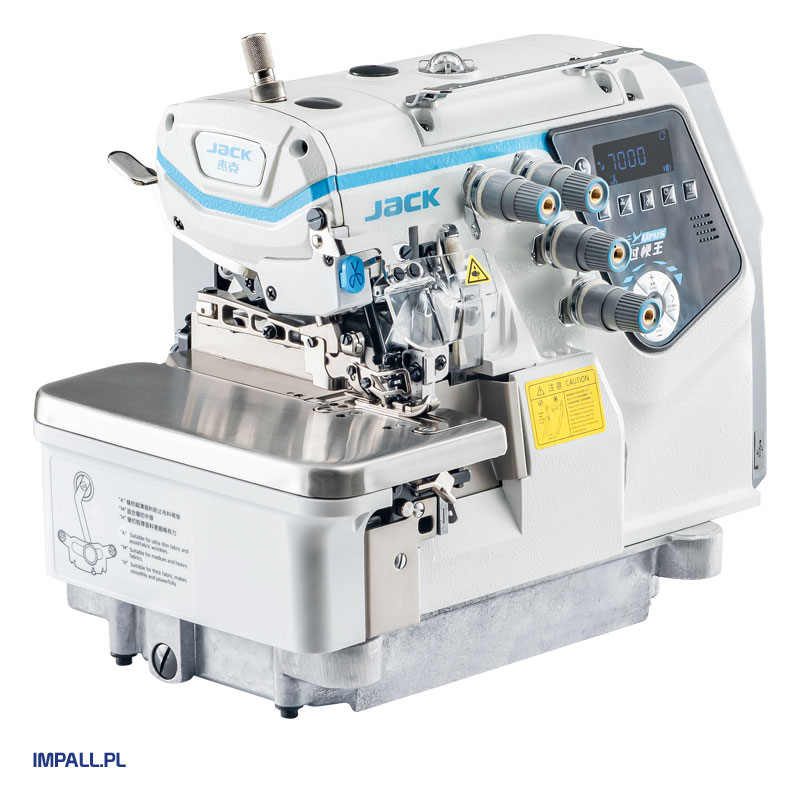

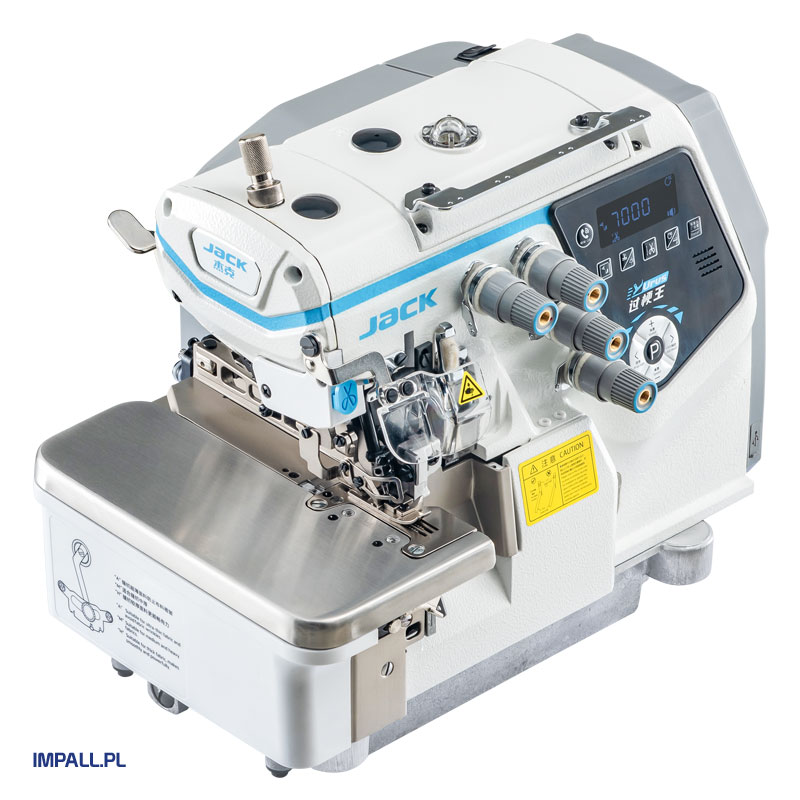

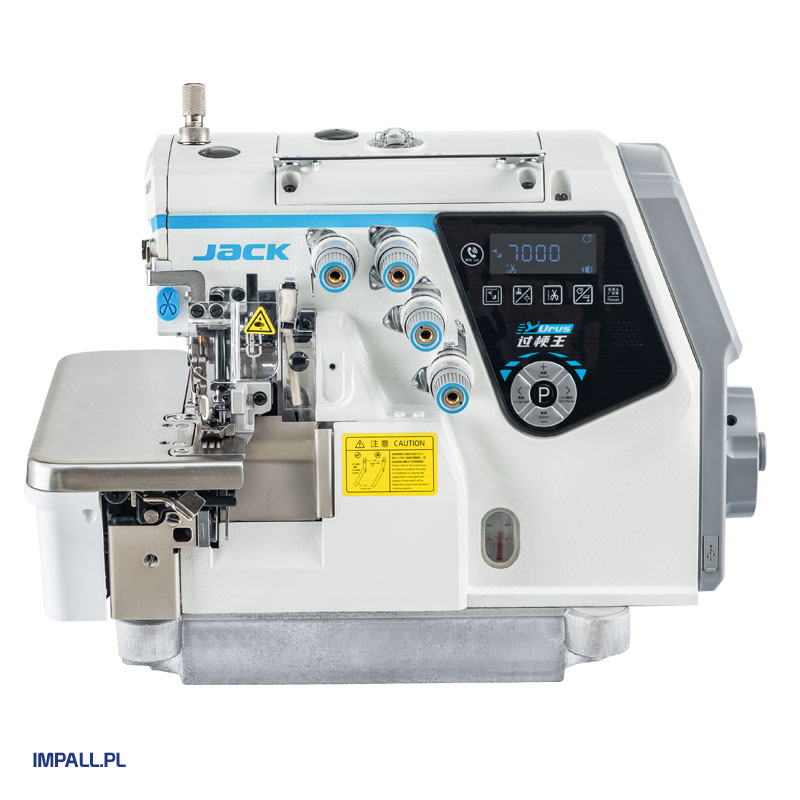

JACK C7-5-M04/435

The latest automatic 5-thread overlock with an AI-based feed system. The M04/435 subclass is equipped with a split-runner foot and is designed for sewing heavyweight materials such as jeans, denim, etc.
Real-time detection of changes in material thickness and AI-calculated correlation of pressure and feed force ensure perfect stitch quality on all materials without the need for mechanical adjustments. Sew a variety of materials: thick, thin, elastic, and hard, at full speed, without sacrificing stitch quality.

The JACK C7 overlock features three-level LED lighting and an easy-to-use control panel for automatic functions:
– presser foot lift,
– chain trimming before and after sewing,
– needle positioning

The machine’s automatic functions can operate in three modes:
– manual
– semi-automatic
– automatic

The C7 overlockers do not require a compressed air connection. All mechanisms related to the automatic functions are electrically controlled (no compressed air connection required).

Technical specifications:
– sewing speed: 6,000 stitches/min
– needle gauge: 5 mm
– seam width: 6 mm
– total seam width: 11 mm
– presser foot lift: 7 mm
– B27 needles (standard needle size: 120 Nm)
– integrated LED workspace illumination
– 230V power supply
