IMP180

Description

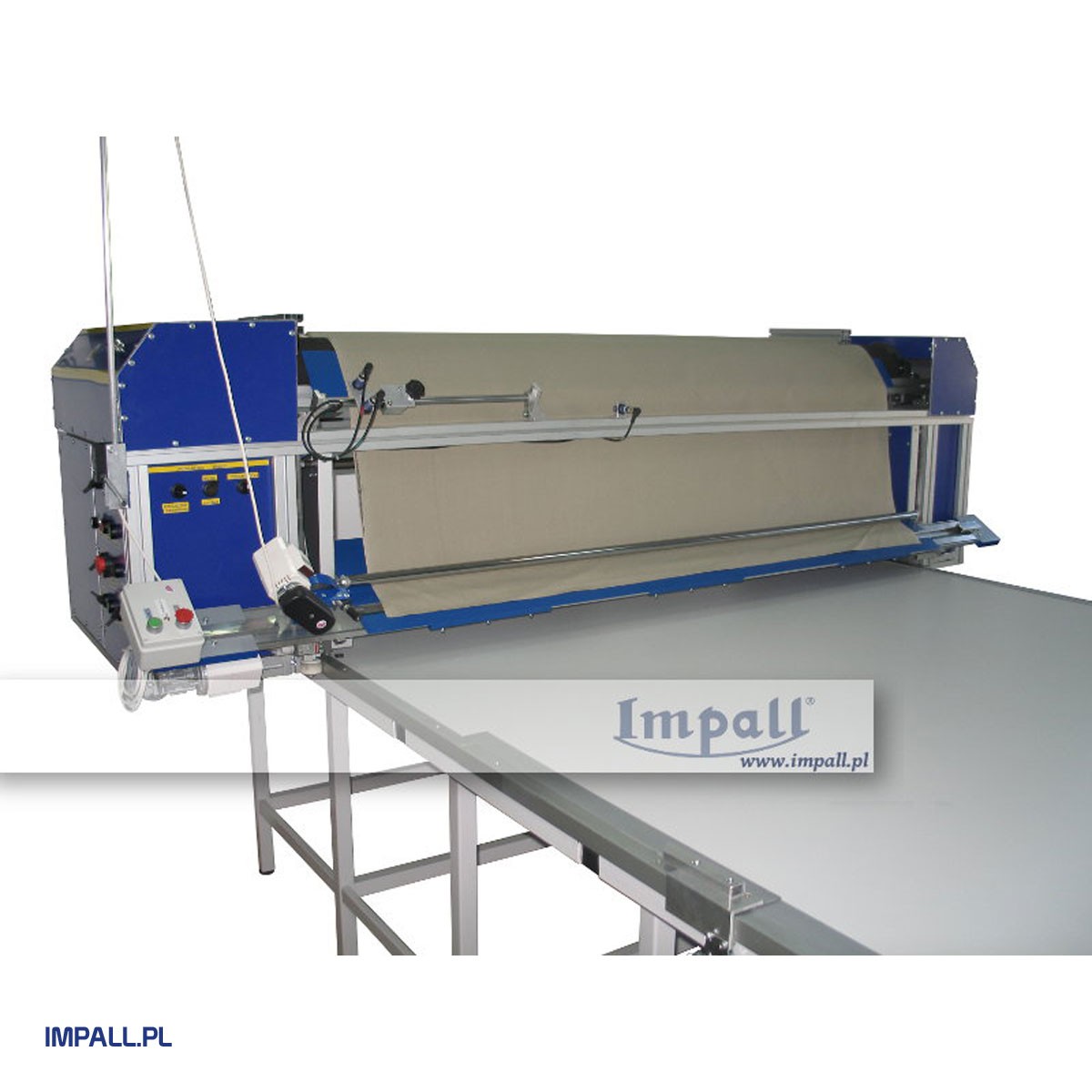

Semi-automatic fabric and knit spreading machine. Features automatic device movement with smooth speed adjustment for layering. Material is fed using one or two rollers along the entire width of the material roll, ensuring tension-free layering, which is particularly important when spreading elastic fabrics and knits. Adjustable height of the material spreading device with an automatic cutting strip (automatic cutting tool).

The starting and ending points of layering can be set anywhere on the table. Adjustable speed (amount) of material feeding. High-quality kinematics ensure precise layering and device reliability.

Standard technical specifications:

• Table width: 190 cm
• Maximum material width: 1.80 m
• Maximum roll weight: 80 kg
• Maximum roll diameter: 60 cm
• Layering height: 20 cm

Additional options:

• Edge alignment adjustment: manual or automatic
• Spreading from flat fabric sheets
• Zig-zag layering (manual or automatic)
• Automatic cycle operation (after initiating the cycle, the spreader moves to the far-right position and starts the return cycle while simultaneously feeding the material. Once the device stops, the automatic cutter moving along the cutting strip is activated).

An economical version without automatic drive is also available.
