GETON AGAIN GOACE-L-P+S-1-1200×800-B-P6+IS2-HR2.6-LH50,AO-1P220

AUTOMATIC MACHINE FOR PERFORING AND SEWING LEATHER PRODUCTS 1200 x 800 MM

Description

Description

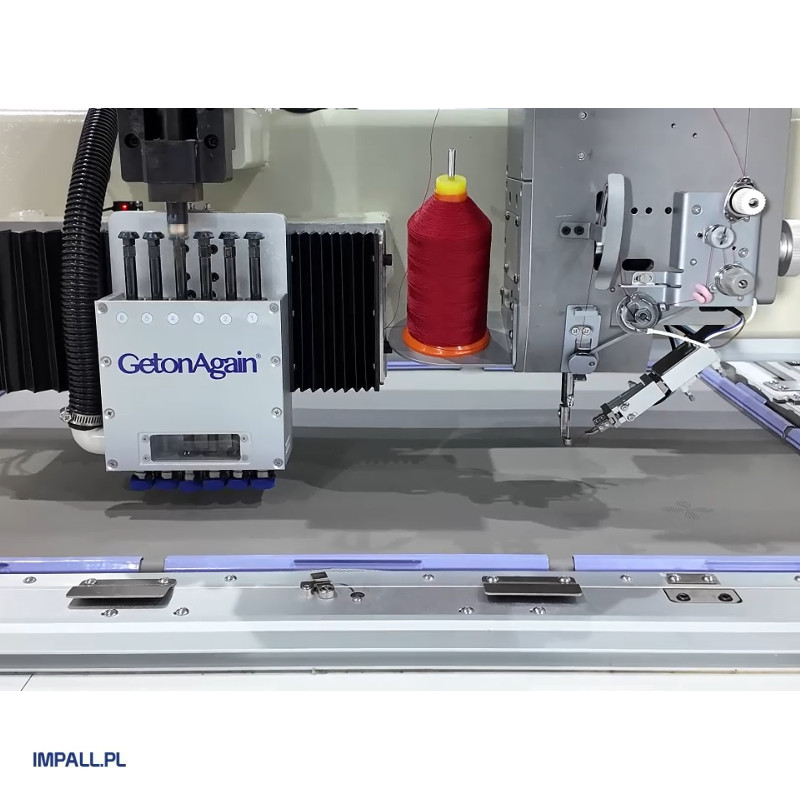

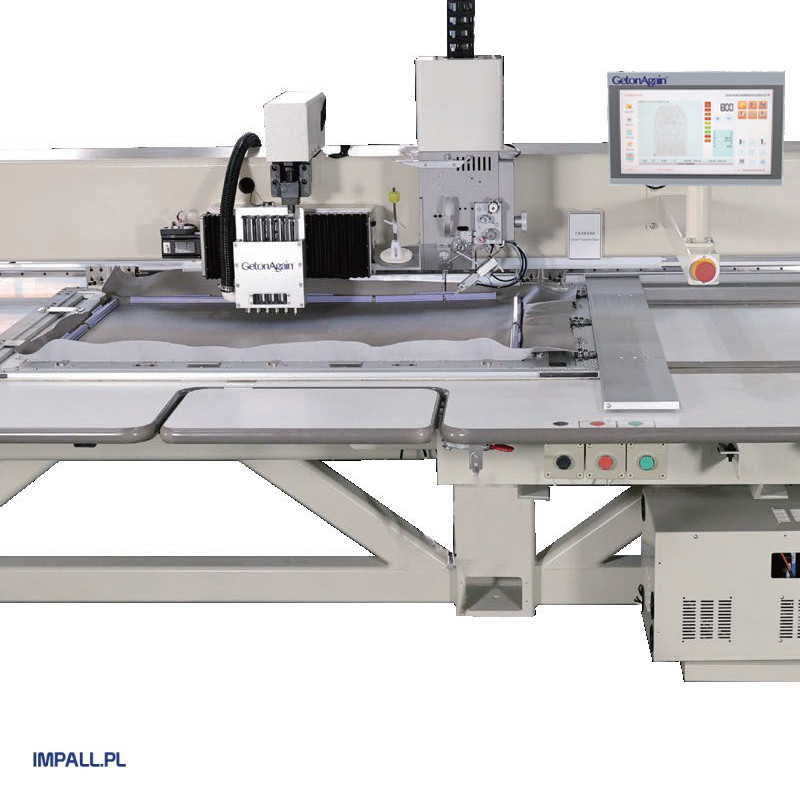

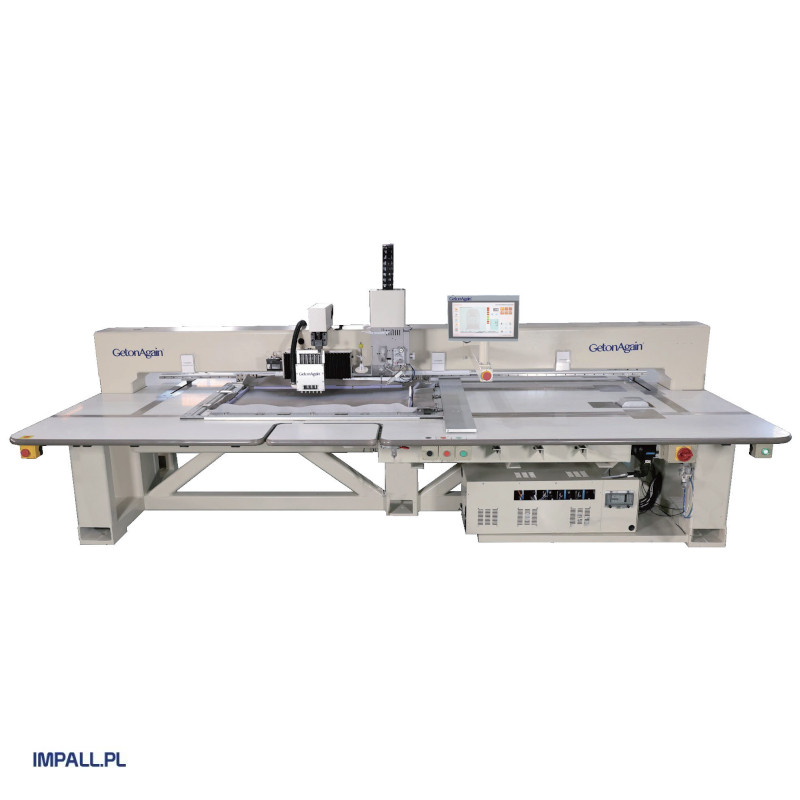

Fully automatic machine for perforating and decorative stitching of leather and technical materials.

Designed for perforating and sewing various types and thicknesses of genuine and synthetic leather used in car seats, interiors, aircraft seats, bags, furniture, etc.

Machine features:
1. Equipped with a 15-inch touchscreen with a user-friendly interface for easy operation.

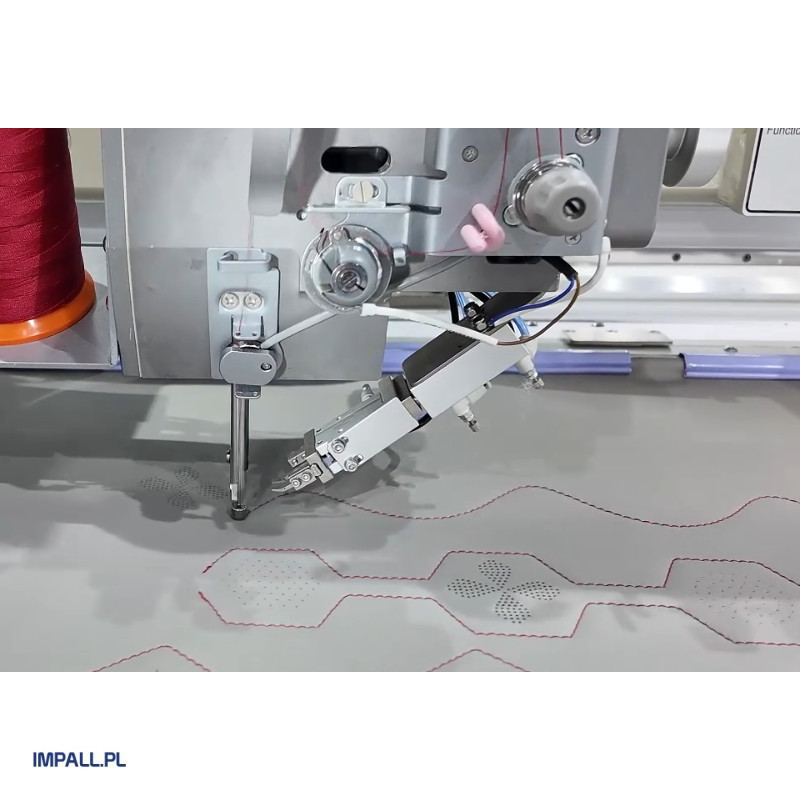

2. Specially designed sewing head for working on leather. The presser foot height is motorized, offering a wide range of adjustments.
3. The sewing head lifts to a height of 50 mm, providing ample space for supporting fabric and easy operation.
4. The machine has a large rotary hook designed for leather, providing a sufficiently large thread capacity (2.9 times the capacity of a standard lockstitch bobbin).
5. Equipped with an upper thread breakage detection function, a bobbin thread counter, and a cut-off counter. 6. The punching machine head is specifically designed and developed for leather materials, and is equipped with various diameters of round punching tools (0.8 mm, 1.0 mm, 1.2 mm, 1.5 mm, 2.0 mm, and 2.5 mm).
7. The machine is equipped with an industrial-strength suction system that effectively removes leather scraps, extending the life of the punching head.
8. The needle bar and related components are DLC-coated for increased wear resistance and extended service life.
9. The machine frame is specially designed for the characteristics of perforating and sewing processes, with a stable structure ensuring precise sewing and punching.
10. It features a specially designed material holder for perforating and sewing processes, ensuring easy loading/unloading and convenient replacement of components for processing.

Technical parameters:
– Perforating speed: 1000 holes/min
– Sewing speed: 800-1200 stitches/min
– Head lift height: 50 mm
– Presser foot lift height: 12 mm
– Working area: 1200 x 800 mm
– Operating air pressure: 0.6 MPa
– DPx17 needles (#18-#23)
– Bobbin diameter: 31.8 mm
– Machine dimensions: 4240 x 2470 x 1700 mm

Compressed air connection required.

Optional options:
– Pattern creation software: GetonAgain Intelligent Perforation, Embroidery, and Sewing CAD System.
– Intelligent IoT system supporting real-time remote monitoring and cloud-based data management, enabling visualization of equipment status and production parameters. Automatically records and analyzes production data, helping to optimize production efficiency and build a digital production control system.
